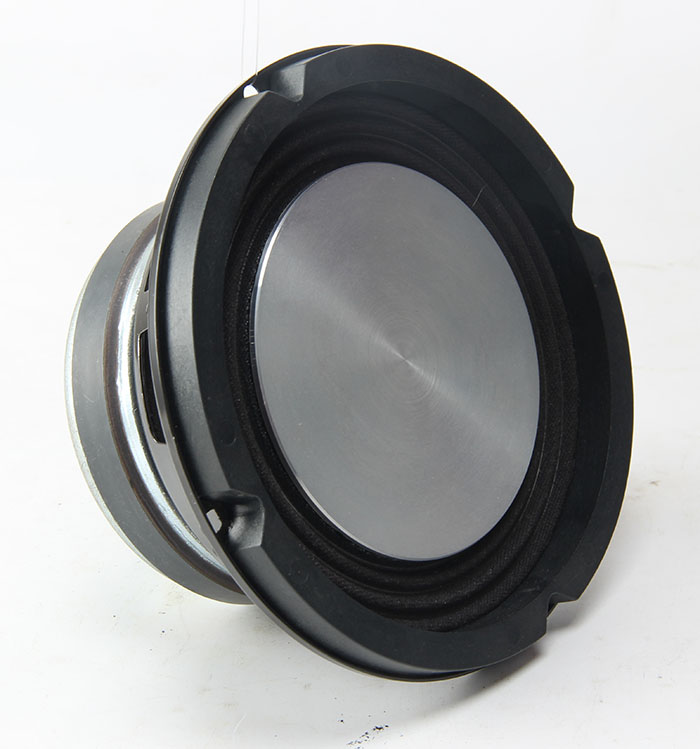

Hi Fi SPEAKER_No14
Product Name：Hi Fi SPEAKER_No14
Od size：Φ165mm
Type name：S(165-1)FL-C-PF
Date：2017/8/2 11:27:02
Clicks：
Product details
| Dimensions / 额定阻抗 | 4.0 Ω±15% at 400HZ |
| Rated impedance/ 最低共振频率(FO) | 45 HZ±20% at 1.0V |
| Resonance Frequency / 额定特性灵敏度 | 56±3dB at 1W/1M |
| Sound Pressure Level / 有效频率范围 | FO ～20K HZ -10dB |
| Effective Frequency Range / 额定功率 | 30 W |
| Rated Power / 最大功率 | 50 W |
| Maximum Power / 额定谐波失真 | ≤5% at 1KHZ at 1W |
